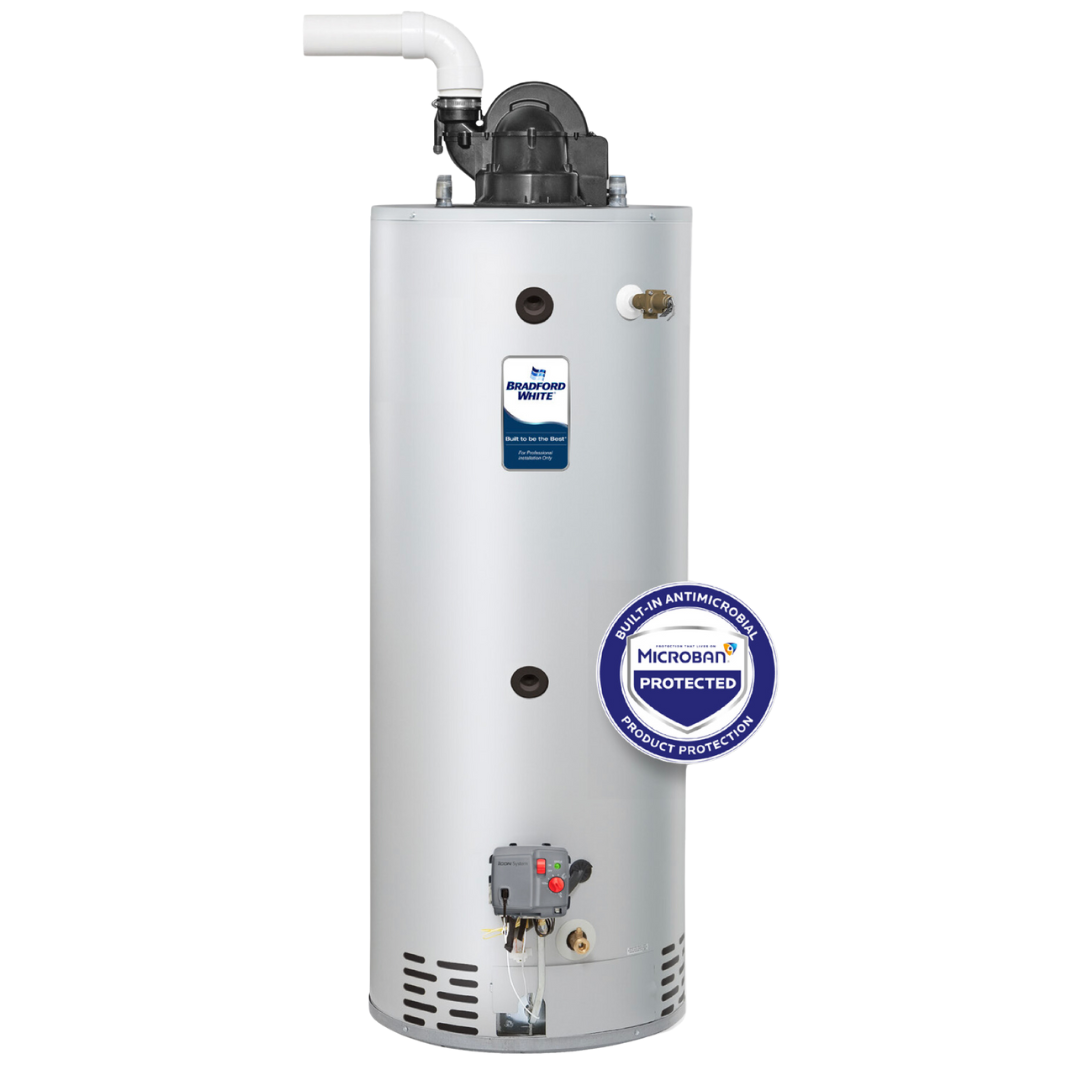

Bradford White Power Vent Combi2 TTW Water Heater

The Combi2® TTW® Residential Models Feature

Defender Safety System®

Designed to be the safest & most reliable flammable
vapor ignition resistant system in the industry with a proven track record since 2003. Featuring an advanced ScreenLok® technology flame arrestor design, resettable
thermal switch, sight window, and designed to be maintenance-free.

Bradford White ICON System®

Intelligent gas control with no need for external
electricity. Proprietary algorithms provide tighter temperature differential and
consistent water temperature levels up to 180°F (82°C). LED light indicates operation
status/service required.

Vitraglas® Lining with Microban®

An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water; and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining.

Hydrojet® Total Performance System

Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank.

AquaVENT MAX™ from Fasco™

The industry's quietest blower motor with a lower profile and robust electrical connection. Includes 10-foot (3m) power cord (120 VAC).

Internal Double Wall Heat Exchanger

1½" (38mm) O.D. glass coated (Vitraglas® with
Microban®) steel coil. 3/4" (19mm) Supply and Return Connections.

Low Heat Exchanger Head Loss—Up to 10 GPM (38L) flow, with less than 5ft.
(1.5m) of head loss. Greatly reduces the required pump size for heat exchange.

Horizontal and Vertical Venting— With 3" (76mm) or 4" (102mm) PVC, ABS or CPVC

High Altitude Read

Certified for installations up to 10,100 feet (3078m) out of the box. No conversion kit required.

Internal Double Wall Heat Exchanger

Double wall 1½" (38mm) O.D. glass coated (Vitraglas® with Microban®) steel coil ensures separation of potable water and heating fluid. ¾" (19mm) NPT Front Supply and Return Connections.

Low Heat Exchanger Head Loss

Up to 8 GPM (30 LPM) flow, with less than 6 ft. (1.8m) of head loss. Greatly reduces the required pump size for heat exchange.

Insulation System

Non-CFC foam covers the tank, reducing heat loss, energy consumption, and improves efficiency and jacket rigidity.

Pedestal Base—Rugged and durable base allows easy transport and positioning while providing corrosion-resistant
contact with floor.

Water Connections—¾" (19mm) NPT factory installed true dielectric fittings

Two Protective Anode Rods—Provides added protection against corrosion for long-term, trouble-free service.

T&P Relief Valve—Installed.

Low Restrictive Brass Drain Valve—Durable tamper proof design.

Thermostatic Mixing Valve (ASSE Approved)—Included.
