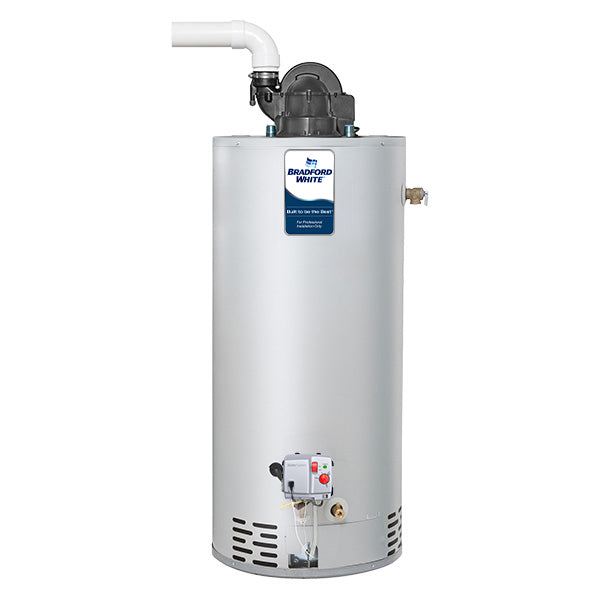

Bradford White Power Vent Gas Water Heaters

Bradford White ICON System™

Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot. This results in savings of pilot gas during standby periods (120 V.A.C.).

Enhanced Performance--Proprietary algorithms provide enhanced First Hour Delivery ratings and tighter temperature differentials.

Advanced Temperature Control System--Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels.

Intelligent Diagnostics--An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting.

Power Vented Water Heater

Designed for installations where atmospheric units cannot be used. Exhaust gases are vented under positive pressure directly out of the building through the roof or the wall.

Powerful Blower Motor

Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations.

Ten Foot Power Cord--Included (120 VAC).

Advanced ScreenLok®

Technology Flame Arrestor Design--Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater (excluding RG1PV55H6N & RG2PV75H6N).

Flammable Vapor Sensor

Electronic sensor prevents burner operation if flammable vapors are detected. The sensor will also prevent operation if there is ongoing flammable vapor burn inside the combustion chamber (excluding RG1PV55H6N & RG2PV75H6N).

Maintenance-Free

No regular cleaning of air inlet openings or flame arrestor is required under normal conditions (excluding RG1PV55H6N & RG2PV75H6N).

Sight Window

Offers a view into the combustion chamber to observe the operation of the pilot and burner.

Factory-Installed Hydrojet®

Total Performance System—Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature buildup in tank.

Vitraglas® Lining

An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600°F (871°C).

Insulation System

Non-CFC foam covers the sides and top of the tank, reducing heat loss. This results in less energy consumption, improved efficiencies, and jacket rigidity.

Factory-Installed Heat Traps

Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.

Cold Combustion

This type of venting system is designed to operate efficiently in areas that lack sufficient air like basements with furnaces

Multiple Venting Options

With both horizontal and vertical venting options the Power Direct Vent heater can operate in most homes
