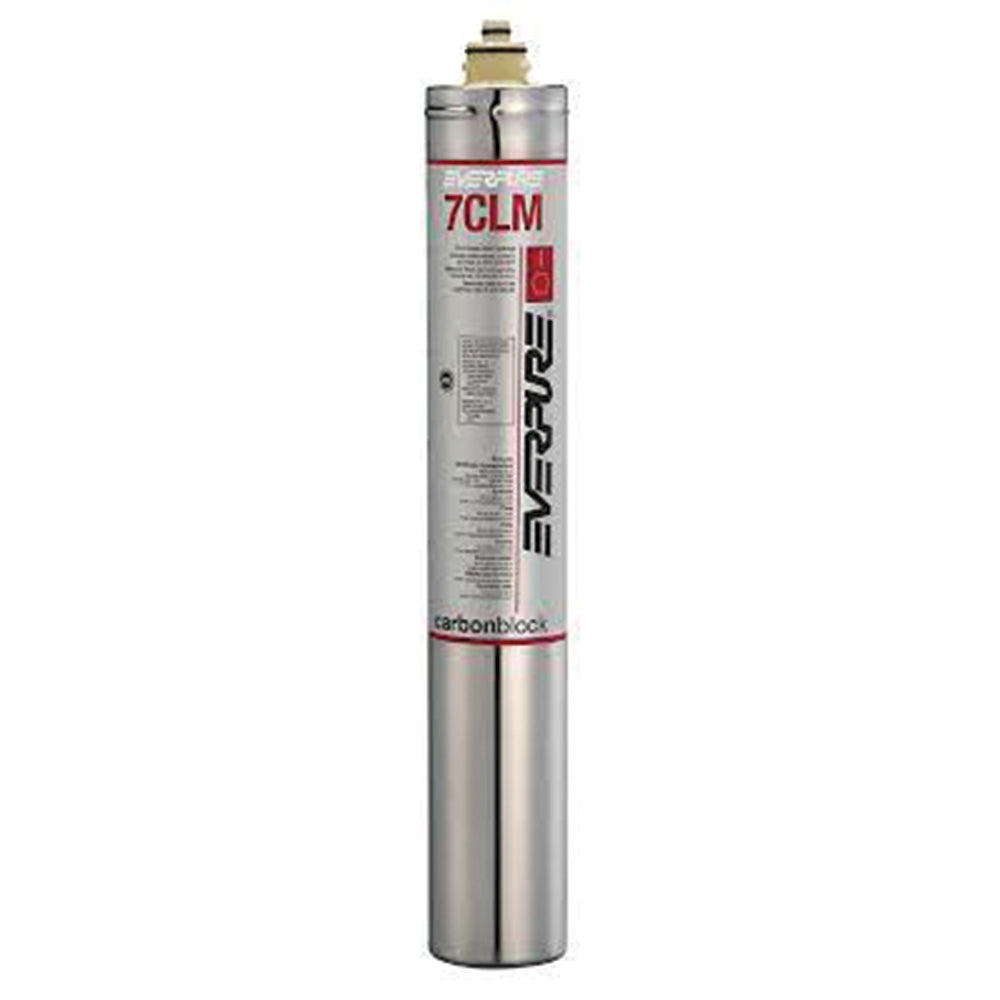

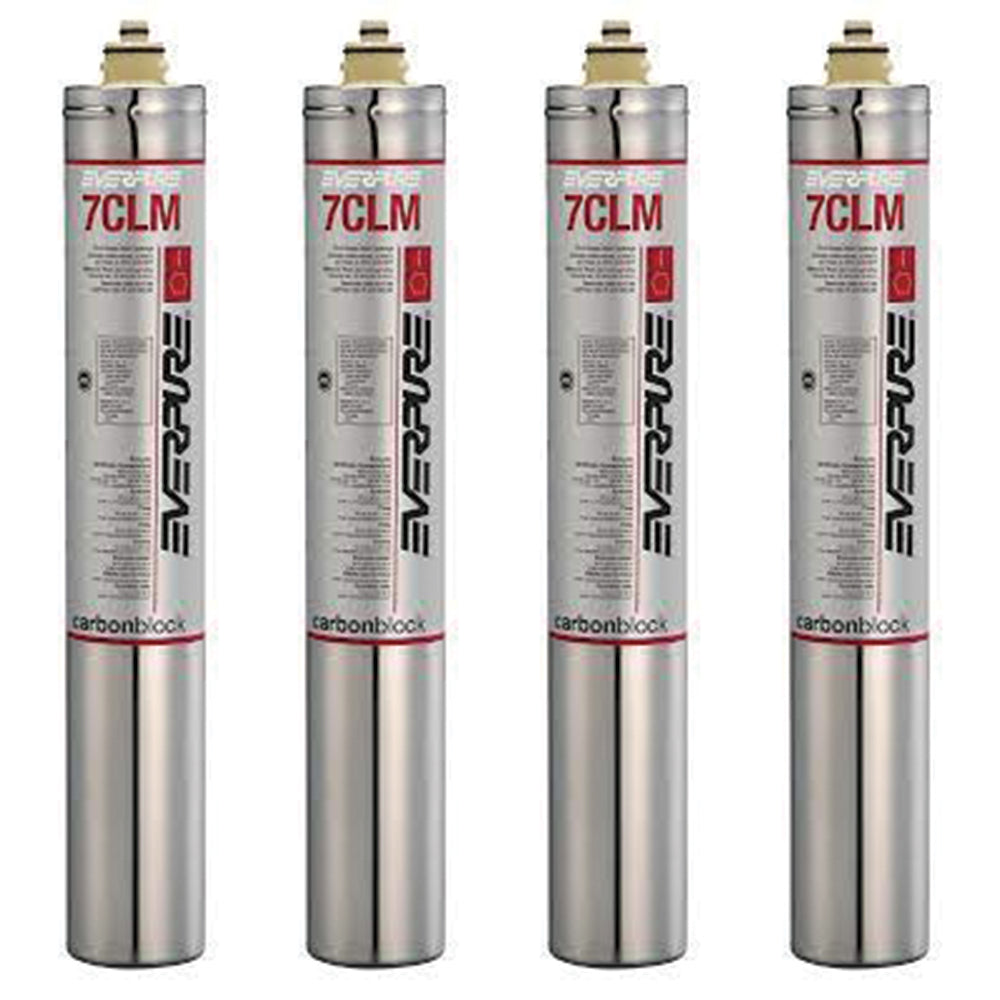

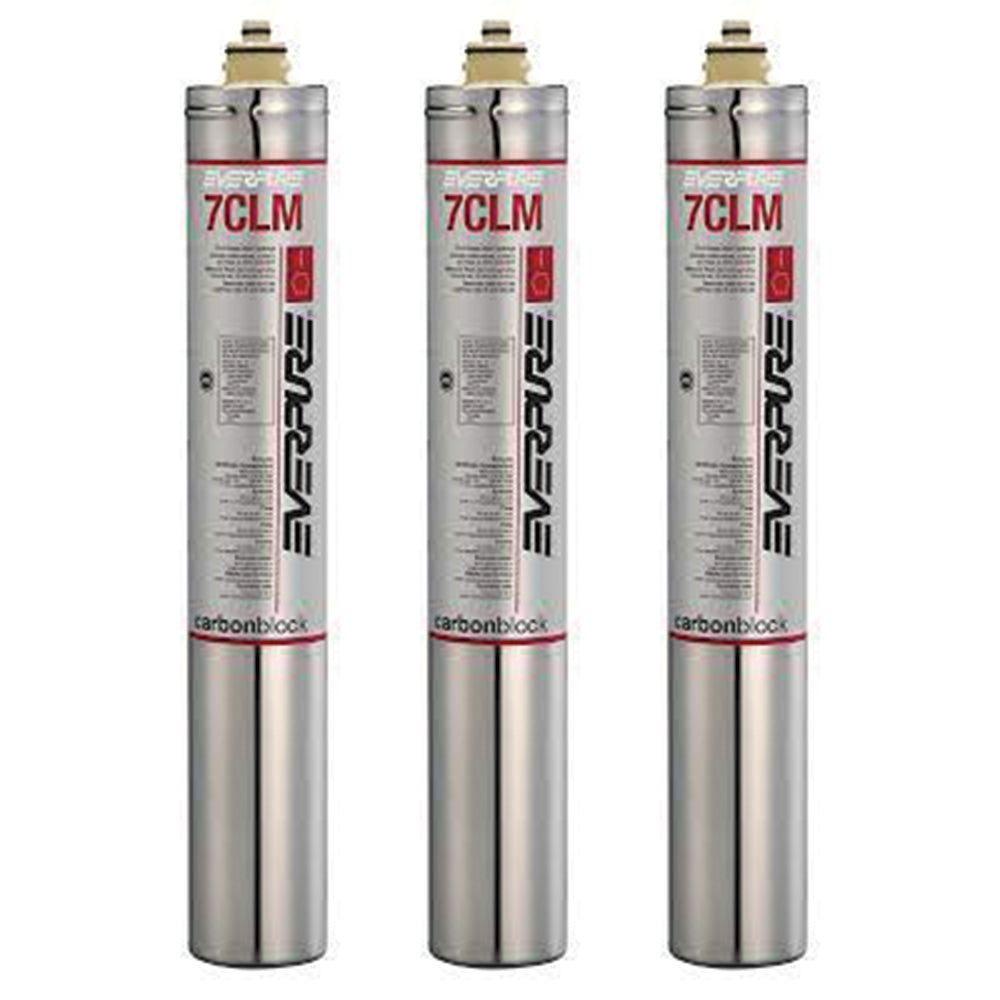

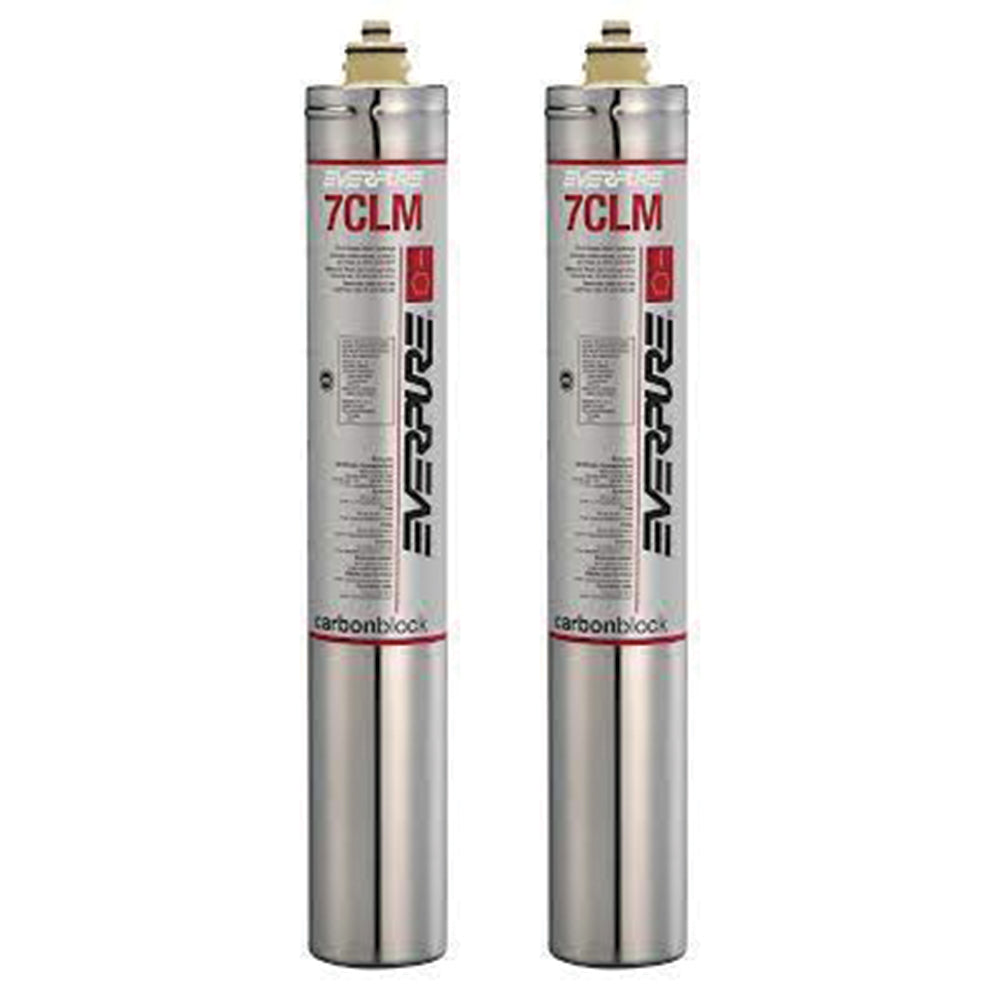

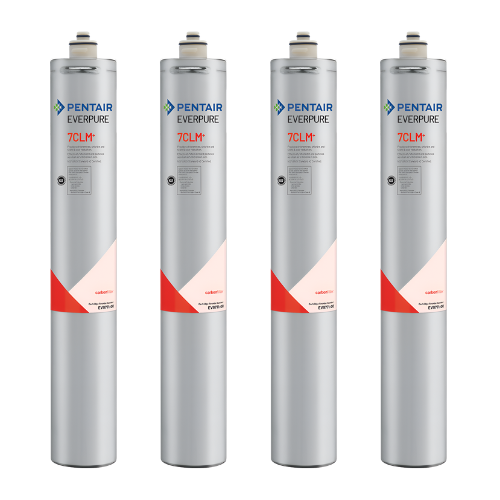

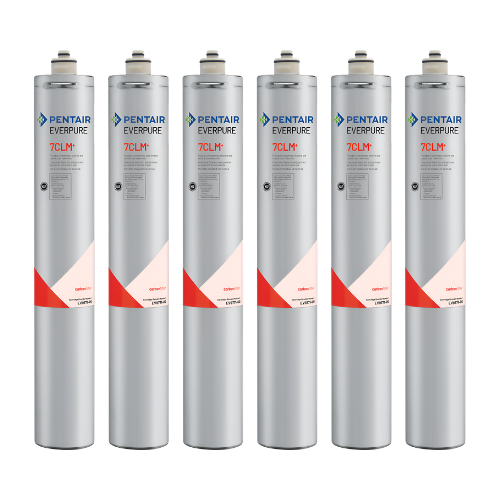

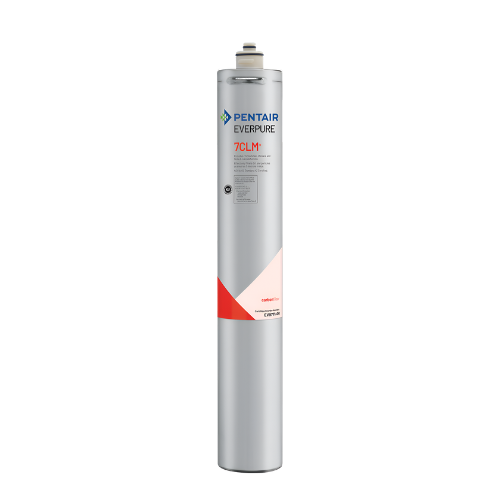

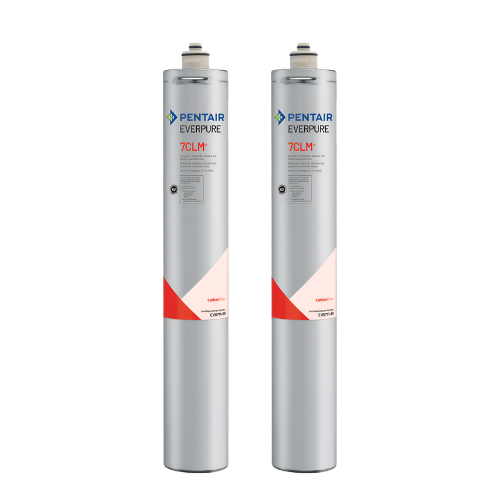

Everpure 7CLM+ Filter Cartridge (EV9771-00)

The 7CLM+ water filter has been specifically designed to address chloramine issues in fountain pop applications.The 7CLM+ also removes particles down to 5 microns. The specialized carbon formulation technology provides dirt, chlorine, taste and odor reduction. The sanitary quick change cartridge is easy to install and replace.

Specs

- Rated Capacity 7,500 gallons @ 1.67 gpm

(28,390 L @ 6.32 Lpm) 9,500 gallons @ 1.33 gpm

(35,961 L at 5.03 Lpm) 12,600 gallons @ 1.00 gpm

(47,696 L @ 3.78 Lpm)

- *Not Performance Tested or Certified by NSF

- Maximum Flow Rate: 1.67 gallons per minute

- Micron rating: 5 microns

- Certifications: NSF/ANSI Standard 42 for chlorine and chloramines reduction

- Overall Dimensions 20.673" L x 3.25" dia. (52.51 x 8.3 cm)

- Pressure Requirements 10 - 125 psi (0.7 – 8.6 bar), non-shock Temperature 35 - 100°F (2 - 38°C)

Application

- Fountain

Features and Benefits

- A specialized carbon formulation maximizes the volume of activated carbon to provide a combination of optimal chloramines reduction with improved product life in a single cartridge.

- Reduces chloramines, chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.

- Compatible with QC7I, Coldrink, High Flow CSR, QL2*, QL3B* and QL3* Heads.

- Superior filtration provides enhanced chlorine taste & odor reduction and filters dirt and particles as small as 5 microns in size.

- Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.

Operational Tips

- Change cartridges on a regular one (1) year preventative maintenance program.

- Always flush the filter cartridge at time of installation and cartridge change.

Installation Tips

- Install vertically on a flat surface with cartridge hanging down.

- Allow 21 ⁄2" (6.35 cm) clearance below the cartridge for easy cartridge replacement.

- Flush cartridge by running water through system for five (5) minutes at full flow.
